Product Details:

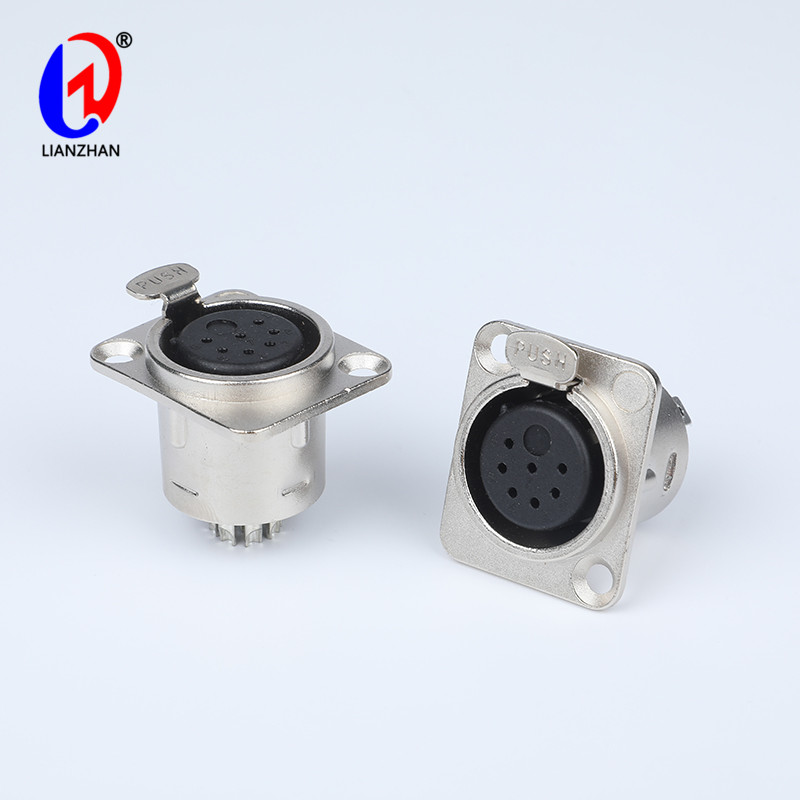

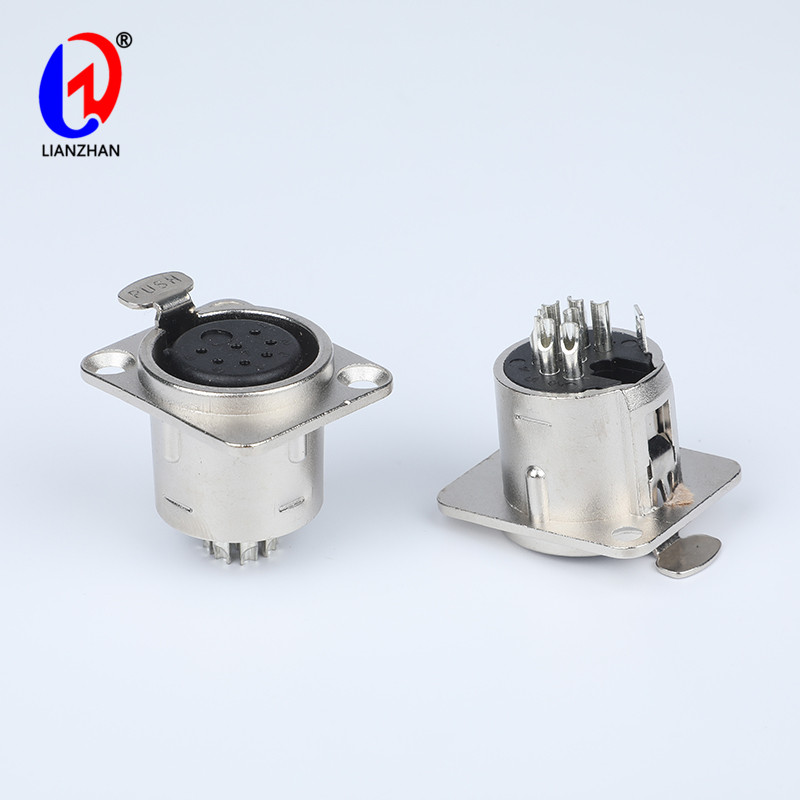

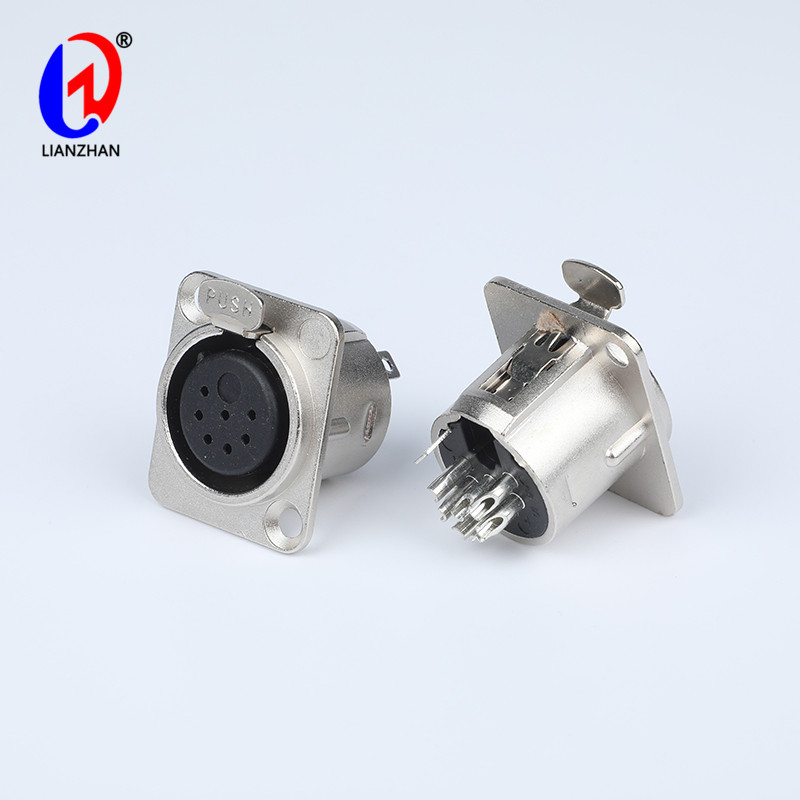

● Type: 7 Pin Audio XLR Female Metal Panel Mount Socket With Push
● This XLR Female Jacks Chassis Panel Mount is suitable for standard XLR Male interface,can be used on snakes and patch bays and fit for series D pattern holes audio studio connector
● A variety of grounding methods are available, and the metal socket uses a unique welding cup contact, which is easier to weld
● Rectangular flange installation, can be installed above or below the panel, super easy to install, reliable performance, contacts are shielded by welding, effectively resisting external electromagnetic interference
● Available in 3, 4, 5, 6 and 7 pin configuration with silver or gold plated contacts
Specification:
| Product Name |
7 Pin Audio XLR Female Metal Chassis Mount Socket |
| Model |
CT7-19 |
| Pin |
7 PIN |
| Contact Resistance |
≤0.2 MΩ |
| Insulation Resistance |
≥100 MΩ |
| Withstand Voltage |
1500V, AC/min |
| Terminal Strength |
≥30 N |
| Rated Load |
250V DC 1.0A |
| Temperature |
-30 ~ +80 ℃ |
| Life |
5000 Time |
