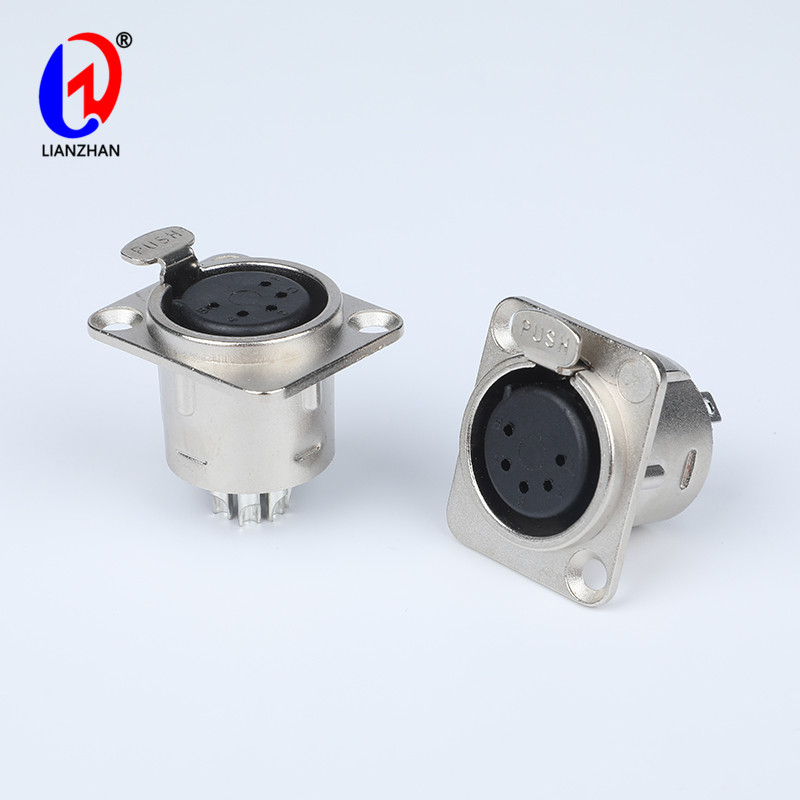

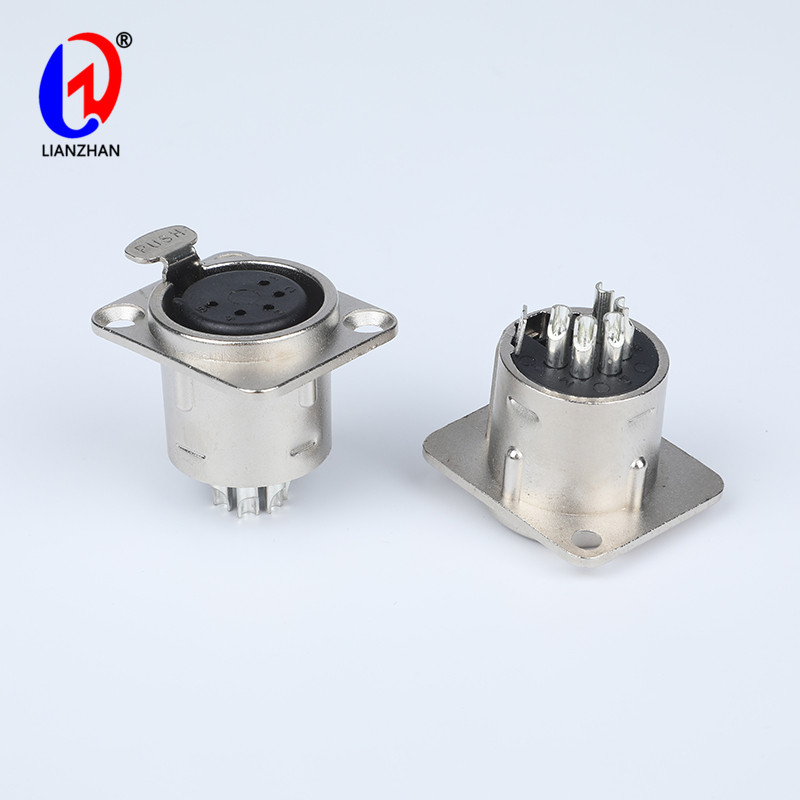

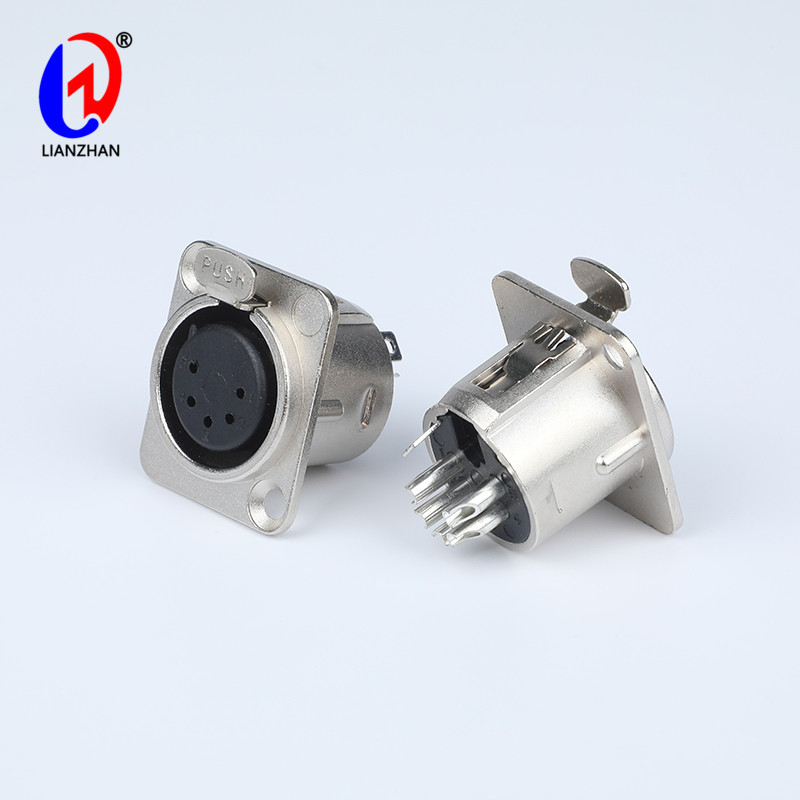

Product Details:
● Type: Metal 5 Pin XLR Female Chassis Socket With Push
● Made of high quality Alloy, good contact ,durable, long service life
● Separate ground contact to mating connector shell and front panel.
●Rectangular flange installation, can be installed above or below the panel, super easy to install, reliable performance, contacts are shielded by welding, effectively resisting external electromagnetic interference
● Available in 3, 4, 5, 6 and 7 pin configuration with silver or gold plated contacts
Specification:
| Product Name |
Push 5 Pin XLR Female Jack Metal Chassis Panel Mount Socket |
| Model |
CT5-19 |
| Pin |
5 PIN |
| Contact Resistance |
≤0.2 MΩ |
| Insulation Resistance |
≥100 MΩ |
| Withstand Voltage |
1500V, AC/min |
| Terminal Strength |
≥30 N |
| Rated Load |
250V DC 1.0A |
| Temperature |
-30 ~ +80 ℃ |
| Life |
5000 Time |
-
