Product Details

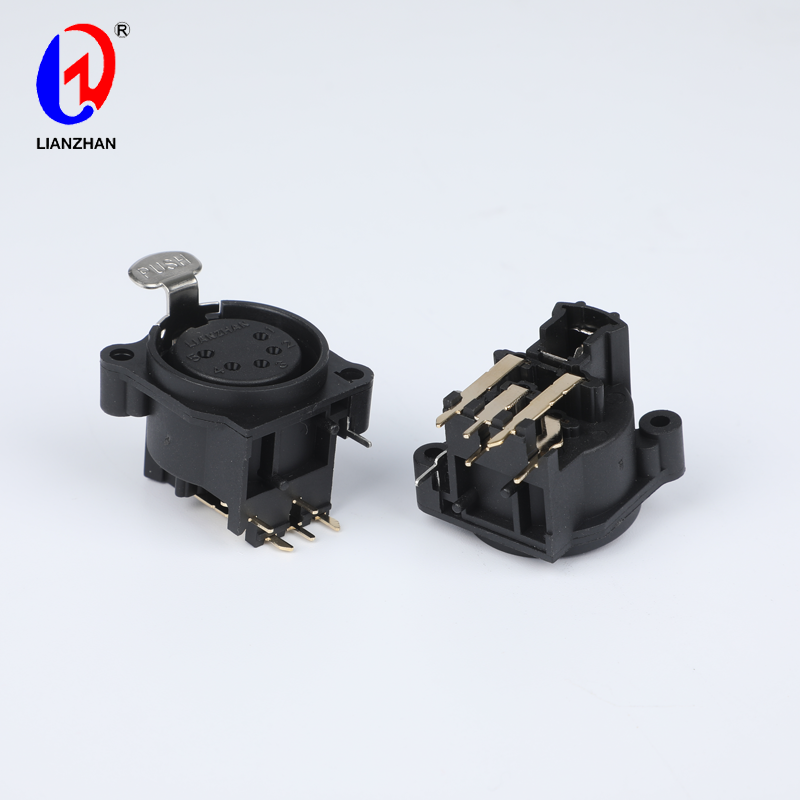

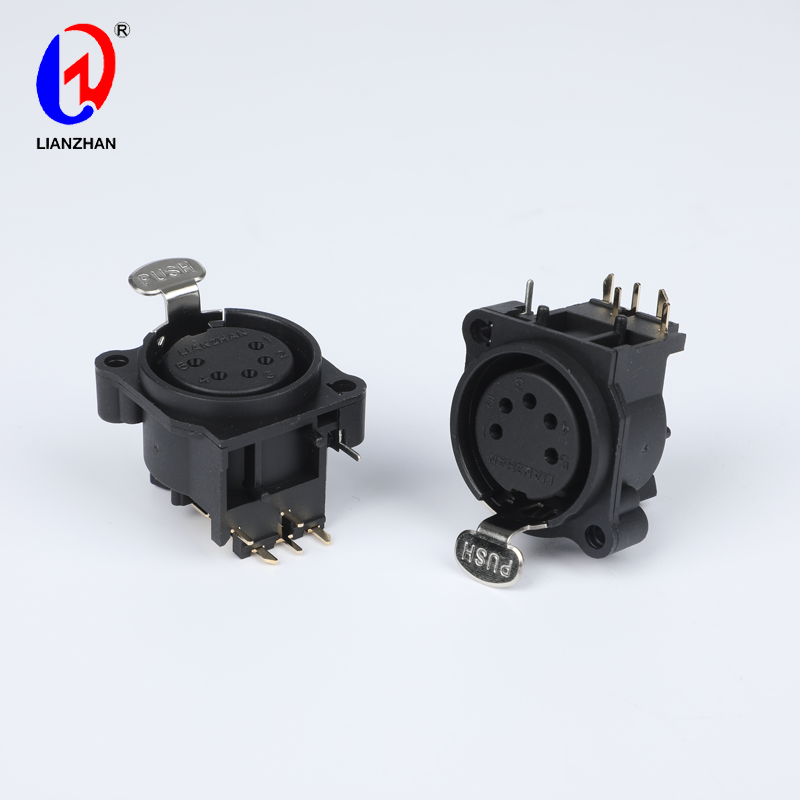

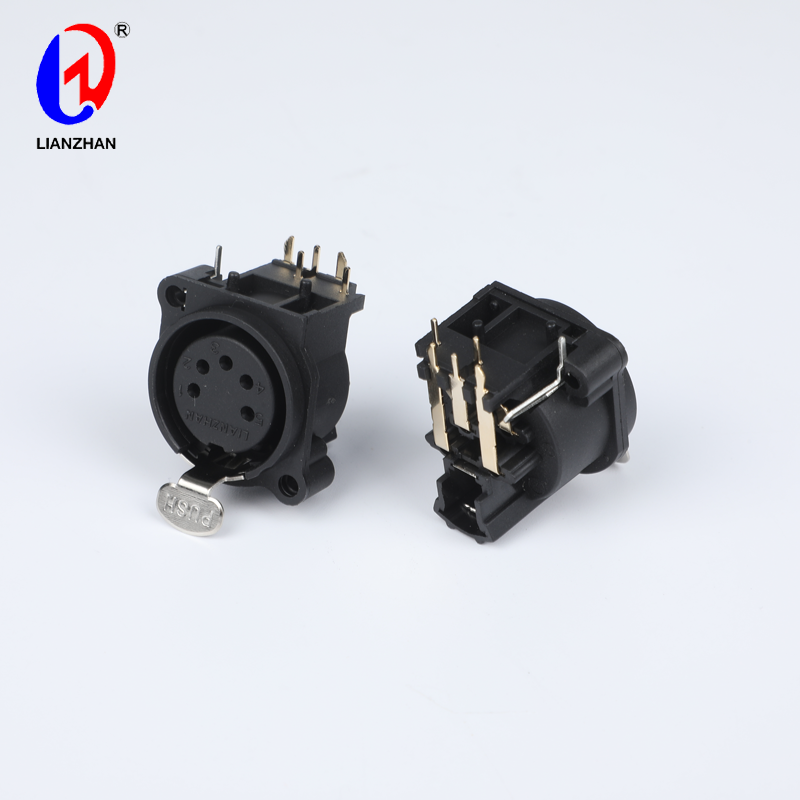

● Type: Neutrik XLR 5 Terminals Female Panel Mount Chassis Connector
● Material: Made of high quality plastic and metal material, good conduction, stable performance.
● This adapter is primarily used with professional audio and video equipment, frequently used by musicians in a studio as well as during live performance
● Can be applied on microphone connections/audio electronics, amplifiers and cabling applications.
● Another one of those adapters that every audio geek needs to have in their toolbox. XLR Adapters for Pro Audio use. Great for mixers, microphones, amplifiers, guitars, electric piano, electric drums etc.
Specification
| Product Name |
Neutrik XLR 5 Terminals Female Panel Mount Chassis Connector |
| Model |
CT5-01FP-J |
| Pin |
3 PIN |
| Contact Resistance |
≤0.2 MΩ |
| Insulation Resistance |
≥100 MΩ |
| Withstand Voltage |
1500V, AC/min |
| Terminal Strength |
≥30 N |
| Rated Load |
250V DC 1.0A |
| Temperature |
-30 ~ +80 ℃ |
| Life |
5000 Time |
-
