Product Details

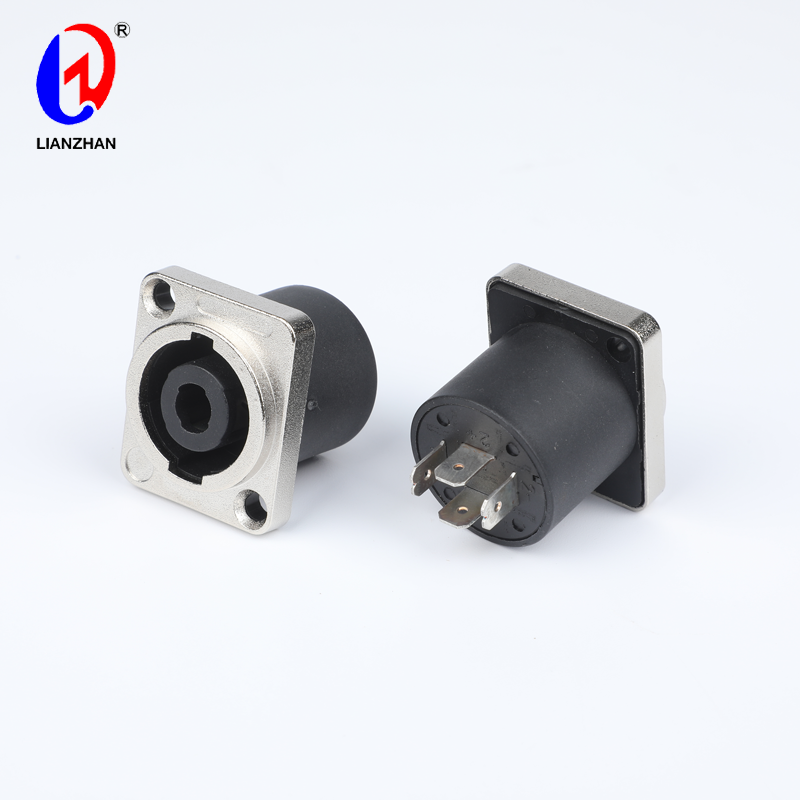

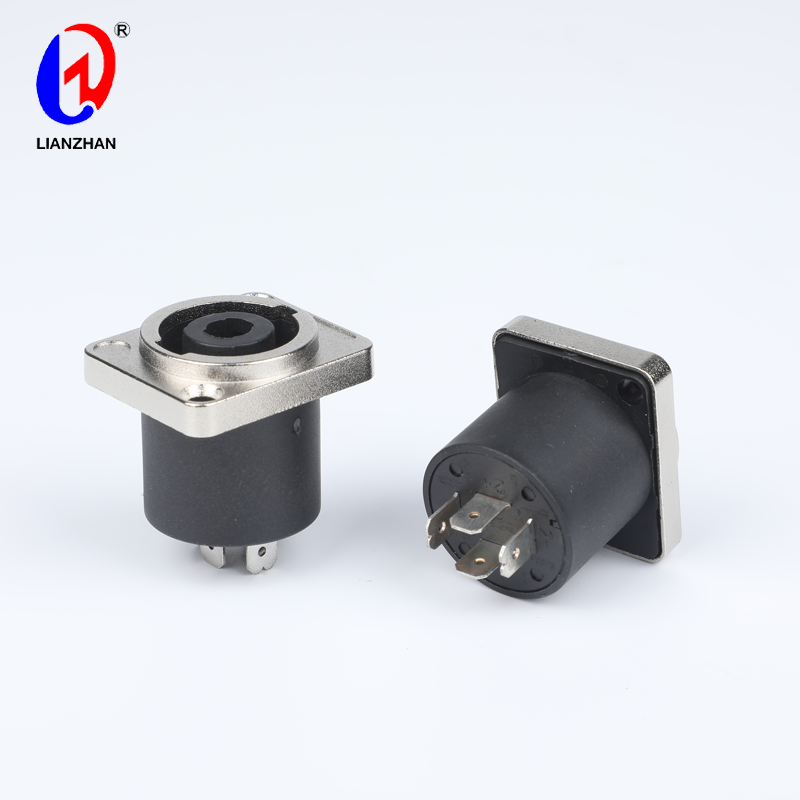

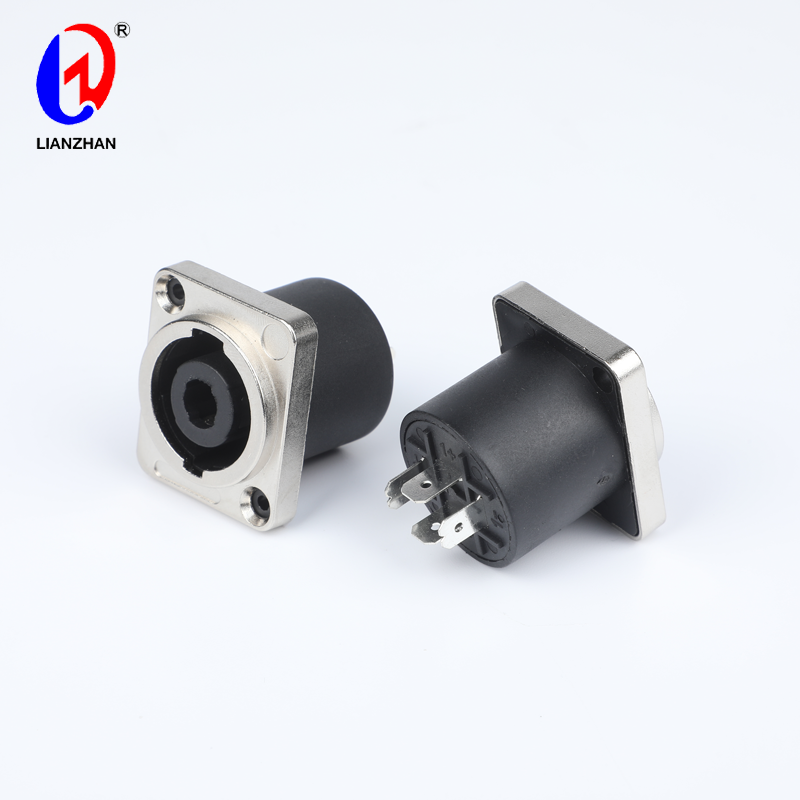

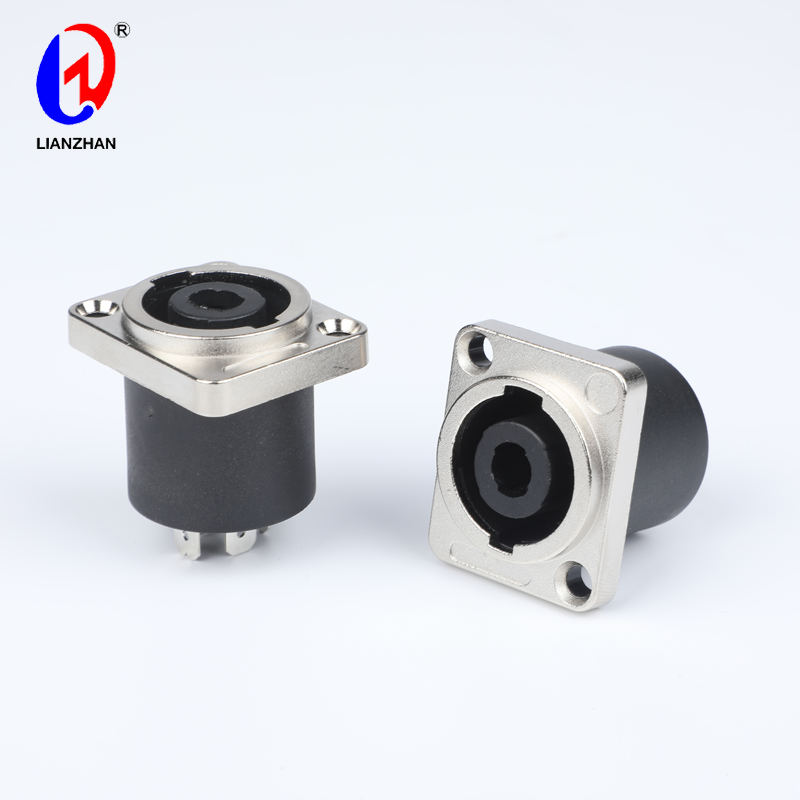

● 4 Pole Square Speakon Female Panel Mount Socket. The plugs has PVC protection, good thickness and good shielding noise.
● Precise Quick Lock System: Designed with extremely precise locking system, improved screw-type termination for highest pull-out force, making it more user-friendly.
● Speakon Compatible: These Speakon connectors are with high adaptability, compatible with speakon NL4FC, NL4FX, NLT4X, NL2FC.
● These Socket Connectors can Work in Any 4-Pin or 2-Pin Speakon, stress relief designed for 10 to 16 gauge AWG cables.
Specification
| Product Name |
SpeakOn Connector 4 Pin Female Chassis Panel Mount Socket |
| Model |
HP-15PG |
| Pin |
4 PIN |
| Contact Resistance |
≤0.01 MΩ |
| Insulation Resistance |
≥2 GΩ |
| Withstand Voltage |
2.7 KV |
| Terminal Strength |
≥30 N |
| Rated Load |
250V AC |
| Temperature |
-25 ~ +70 ℃ |
| Life |
5000 Time |
-
